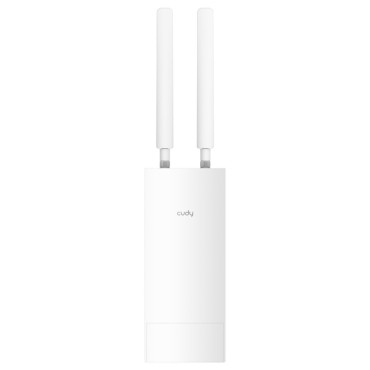

Cudy AP1300 Outdoor 867 Mbit/s White Power over Ethernet (PoE)

Datablad

• Output voltage 24 - 57 V
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) -20 - 60 °C
• Operating relative humidity (H-H) 10 - 90%
• International Protection (IP) code IP65
• Quick start guide Yes
• Mounting kit Yes
• Operating modes Wireless Access Point, Wireless Router, Wireless Extender, WISP
• Cables included LAN (RJ-45)
• Placement Pole, Wall
• Storage relative humidity (H-H) 5 - 90%
• Flash memory 16 MB
• Internal memory 128 MB
• Ethernet LAN data rates 100
  1000
• Ethernet LAN (RJ-45) ports 1
• Processor frequency 880 MHz
• Built-in processor Yes
• Security algorithms WPA2-PSK
• Maximum data transfer rate 867 Mbit/s
• Chipset MT7621DA+MT7613B+MT7603E
• Networking standards IEEE 802.3af
  IEEE 802.3at
  IEEE 802.11a
  IEEE 802.11ac
  IEEE 802.11b
  IEEE 802.11g
  IEEE 802.11n
• BeamForming Yes
• Power over Ethernet (PoE) Yes
• Reset button Yes
• Antennas quantity 2
• Antenna type External
• Channel bandwidth 80 MHz
• Quality of Service (QoS) support Yes
• MIMO Yes
• WPS push button Yes
• Maximum outdoor range 170 m
• 5 GHz Yes
• 2.4 GHz Yes
• Wi-Fi Multimedia (WMM)/(WME) Yes
• Service Set Identifier (SSID) features Multiple SSIDs
• Antenna features Detachable antenna
• PoE adapter included Yes
• Maximum data transfer rate (5 GHz) 867 Mbit/s
• Maximum data transfer rate (2.4 GHz) 300 Mbit/s
• Rate limiting Yes
• MIMO type Multi User MIMO
• 6 GHz No
• Wireless isolation Yes
• MAC address filtering Yes
• Fit AP mode features Mesh networking
• Power over Ethernet (PoE) type supported Active PoE
• Band steering Yes
• Antenna included Yes
• Fast roaming Yes
• Product colour White
• Height 240 mm
• Width 100 mm
• Depth 53.7 mm
• Compatible operating systems Microso� Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
• Antenna height 19.8 cm
• Antenna width 2.16 cm
• Antenna depth 1.55 cm

Särskilda hänvisningar

• ean13 6971690792893
