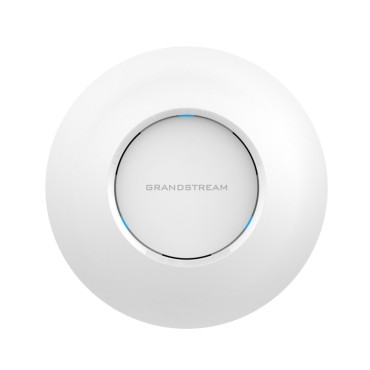

Grandstream GWN 7625 ACCESS POINT

Datablad

• Operating temperature (T-T) 0 - 50 °C
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Suitable for outdoor use No
• Mounting kit Yes
• Mounting style Ceiling, wall
• Shooting distance 145 m
• Number of users 200 user(s)
• Ethernet LAN (RJ-45) ports 2
• Security algorithms WEP
• Maximum data transfer rate 2030 Mbit/s
• Networking standards IEEE 802.11a
  IEEE 802.11ac
  IEEE 802.11b
  IEEE 802.11g
  IEEE 802.11n
• Total Power over Ethernet (PoE) budget 13 W
• Power over Ethernet (PoE) Yes
• Supported network protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• Gamepad Y
• Reset button Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• PoE standard IEEE 802.3af/at/az
• Management software Yes
• Cable lock slot Yes
• 5 GHz Yes
• 2.4 GHz Yes
• VLAN support Yes
• Number of SSID supported 16
• Maximum data transfer rate (5 GHz) 1733 Mbit/s
• Maximum data transfer rate (2.4 GHz) 300 Mbit/s
• MAC address filtering Yes
• MU-MIMO Yes (4x4:4 - 5GHz and 2x2:2 - 2.4GHz)
• Receiver sensitivity 5 GHz 802.11a: -92 dBm at 6Mbps, -74 dBm at 54Mbps
  802.11ac 20 MHz: -67 dBm at MCS8
  802.11ac 80 MHz: -59 dBm at MCS9
  802.11ac: HT40: -63 dBm at MCS9
  802.11n 20 MHz: -74 dBm at MCS7
  802.11n 40 MHz: -71 dBm at MCS7
• Receiver sensitivity 2.4 GHz 802.11b: -96 dBm at 1 Mb/s, -88 dBm at 11 Mb/s
  802.11g: -93 dBm at 6 Mb/s, -75 dBm at 54 Mb/s
  802.11n 20 MHz: -73 dBm at MCS7
  802.11n 40 MHz: -70 dBm at MCS7
• Safe start-up Yes
• WebGui Yes
• Network interface Base-T 10/100/1000 with auto detection
• Captive portal Yes
• MU-MIMO technology Yes
• QoS support 802.11e/WMM
• Product colour White
• Height 45.9 mm
• Width 205.3 mm
• Weight 897 g
• Depth 205.3 mm

Särskilda hänvisningar

• ean13 6947273703983
