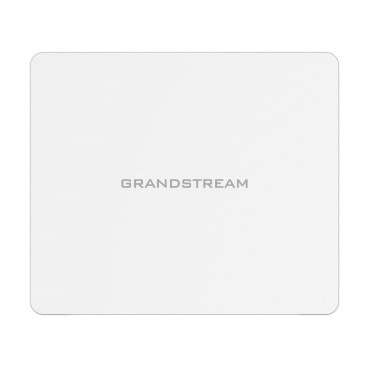

Grandstream GWN7603 wireless access point 1,27 Gb/s White Power over Ethernet (PoE)

Datablad

• Storage temperature (T-T) -10 - 60 °C
• Operating temperature (T-T) 0 - 45 °C
• Operating relative humidity (H-H) 10 - 90%
• Number of products included 1 pc(s)
• LED indicators Yes
• Quick start guide Yes
• Mounting kit Yes
• Placement Ceiling, Wall
• Ethernet LAN data rates 10,100,1000 Mbit/s
• Maximum data transfer rate 1270 Mbit/s
• Networking standards IEEE 802.11a
  IEEE 802.11ac
  IEEE 802.11b
  IEEE 802.11g
  IEEE 802.11n
• Power over Ethernet (PoE) Yes
• Supported network protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• Reset button Yes
• Antennas quantity 2
• Web-based management Yes
• Antenna type Internal
• Quality of Service (QoS) support Yes
• MIMO Yes
• Cable lock slot type Kensington
• Cable lock slot Yes
• Antenna gain level (max) 3.5 dBi
• 5 GHz Yes
• 2.4 GHz Yes
• Wi-Fi Multimedia (WMM)/(WME) Yes
• Number of SSID supported 16
• MIMO type 2x2
• Transmitting power 24 dBmW
• Product colour White
• Height 115 mm
• Width 135 mm
• Weight 215 g
• Depth 30 mm
• Certification FCC, CE, RCM, IC, UKCA
• Receiver sensitivity 2,4 GHz: 802.11b: -96 dBm 1 Mb/s, -88 dBm 11 Mb/s; 802.11g: -93 dBm 6 Mb/s, -75 dBm 54 Mb/s; 802.11n 20 MHz: -73 dBm MCS7; 802.11n 40 MHz: -70 dBm MCS7, 5 GHz: 802.11a: -92 dBm 6 Mb/s, -74 dBm 54 Mb/s; 802.11ac 20 MHz: -67 dBm MCS8; 802.11ac: HT40: -63 d

Särskilda hänvisningar

• ean13 6947273704997
