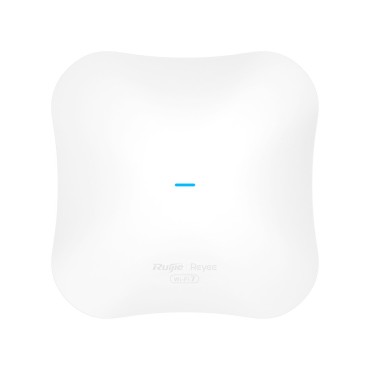

Ruijie Networks RG-RAP72PRO wireless access point 5011 Mbit/s White Power over Ethernet (PoE)

Datablad

• Quantity per pack 1 pc(s)
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• Operating relative humidity (H-H) 5 - 95%
• LED indicators System
• International Protection (IP) code IP41
• Power consumption (max) 30 W
• Placement Ceiling, Wall
• Number of users 511 user(s)
• Storage relative humidity (H-H) 5 - 95%
• Flash memory 256 MB
• Internal memory 512 MB
• Ethernet LAN data rates 10
  100
  1000
  2500
• Ethernet LAN (RJ-45) ports 1
• Security algorithms WPA3-SAE
• Input current 2.5 A
• DC-in jack Yes
• Maximum data transfer rate 5011 Mbit/s
• Networking standards IEEE 802.1x
  IEEE 802.3af
  IEEE 802.3at
  IEEE 802.11a
  IEEE 802.11ac
  IEEE 802.11ax
  IEEE 802.11b
  IEEE 802.11be
  IEEE 802.11g
  IEEE 802.11k
  IEEE 802.11n
  IEEE 802.11r
• Power over Ethernet (PoE) Yes
• Reset button Yes
• Antenna type Internal
• MIMO Yes
• DC voltage range 12 V
• Antenna gain level (max) 3 dBi
• 5 GHz Yes
• 2.4 GHz Yes
• Wi-Fi Multimedia (WMM)/(WME) Yes
• Number of SSID supported 8
• Maximum data transfer rate (5 GHz) 4323 Mbit/s
• Maximum data transfer rate (2.4 GHz) 688 Mbit/s
• MIMO type Multi User MIMO
• Antenna direction type Omni-directional
• DHCP server Yes
• Spread spectrum method OFDMA
• Product colour White
• Height 40 mm
• Width 208 mm
• Weight 650 g
• Depth 208 mm
• Receiver sensitivity 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-
  85dBm(11Mbps)
  11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，-
  76dBm(36Mbps)，-71dBm(54Mbps)
  11n: -83dBm(MCS0)，-65dBm(MCS7)，-
  83dBm(MCS8)，-65dBm(MCS15)
  11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9)
  11ac: 40MHz: -79dBm(MC
• Compliance certificates CE

Särskilda hänvisningar

• ean13 6976915001996
