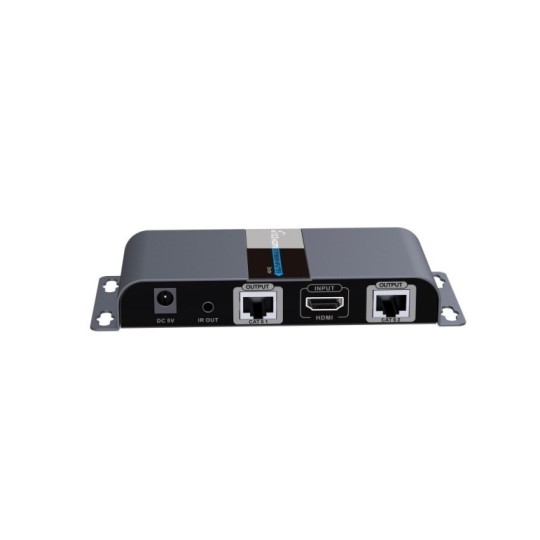

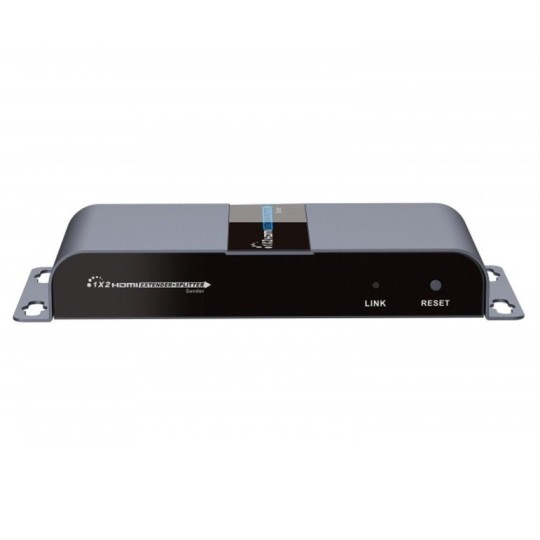

Techly HDMI 1x2 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL21TY

Datablad

• Material Aluminium
• Vendor code 028184
• Storage temperature (T-T) -20 - 70 °C
• Operating temperature (T-T) 0 - 60 °C
• Type AV transmitter & receiver
• LED indicators Yes
• AC adapter included Yes
• Sustainability certificates CE
• Quick start guide Yes
• Remote control type IR
• Wall mountable Yes
• Cables included IR
• Operating voltage 5 V
• Maximum resolution 1920 x 1080 pixels
• Plug and Play Yes
• Storage relative humidity (H-H) 0 - 95%
• Audio formats supported PCM
• Input current 2 A
• DC-in jack Yes
• HDCP version 1.2
• HDCP Yes
• Maximum refresh rate 60 Hz
• Supported video modes 480i
  480p
  576i
  576p
  720p
  1080i
  1080p
• HDMI version 1.3
• Power over Ethernet (PoE) Yes
• Audio support Yes
• 3D No
• Number of HDMI outputs 2
• HDMI in 1
• Colour depth 36 bit
• Cable types supported Cat6
  Cat6a
  Cat7
• RJ-45 input ports 1
• RJ-45 output ports 2
• Maximum transfer distance 40 m
• Operating voltage (receiver) 5 V
• Remote (IR) output 1
• Remote (IR) input 1
• Receiver dimensions (WxDxH) 710 x 66 x 23 mm
• Product colour Black
• Weight 782 g
• Certification CE, FCC
• Transmitter dimensions (WxDxH) 160 x 65 x 20 mm
• IR blaster included Yes
• HDCP & EDID bypass Yes

Särskilda hänvisningar

• ean13 8054529028184
