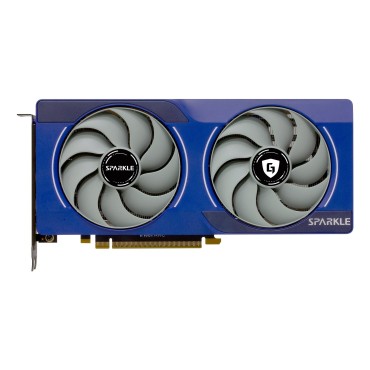

Sparkle Technology Intel Arc B570 GUARDIAN OC 10 GB GDDR6

Datablad

• Length 242 mm
• Package type Box
• Power consumption (typical) 150 W
• Power consumption (max) 170 W
• Number of slots 2.2
• Maximum resolution 7680 x 4320 pixels
• Windows operating systems supported Windows 10
• Processor frequency 2500 MHz
• DisplayPort version 2.1
• Dual Link DVI No
• HDMI version 2.1
• HDMI ports quantity 1
• Interface type PCI Express x8 4.0
• Number of fans 2 fan(s)
• Cooling type Active
• Minimum RAM 8000 MB
• Supplementary power connectors 1x 8-pin
• DisplayPorts quantity 3
• Graphics processor Arc B570
• Graphics processor family Intel
• Graphics card memory type GDDR6
• Discrete graphics card memory 10 GB
• Memory bus 160 bit
• OpenCL version 3.0
• DirectX version 12 Ultimate
• OpenGL version 4.6
• Memory bandwidth (max) 380 GB/s
• Minimum system power supply 600 W
• TV tuner integrated No
• CUDA No
• Maximum displays per videocard 4
• Ray accelerators 18
• Parallel processing technology support Not supported
• Power supply location Top
• Processor boost clock speed 2660 MHz
• Product colour Blue
• Height 105 mm
• Weight 796 g
• Depth 44 mm
• Minimum system requirements PCI-Express compliant MB with one x16 PCIe slot
• Xe-cores 18
• Intel® Xe Matrix Extensions (Intel® XMX) Engines 144
• NPU performance up to 203 TOPs

Särskilda hänvisningar

• ean13 4711342290856
