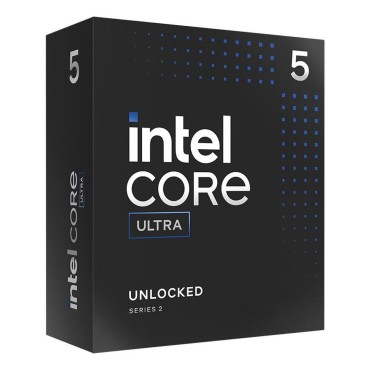

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box

Datablad

• Processor model 225
• Processor manufacturer Intel
• Processor family Intel Core Ultra 5
• Processor cores 10
• Maximum internal memory 192 GB
• Status Launched
• Launch date Q1'25
• Use conditions PC/Client/Tablet
• Market segment Desktop
• PCI Express slots version 4.0
  5.0
• OpenCL version 3.0
• Processor cache 20 MB
• Processor threads 10
• Processor cache type Smart Cache
• Processor generation Intel Core Ultra (Series 2)
• On-board graphics card model Intel Graphics
• Discrete graphics card model Not available
• On-board graphics card Yes
• Discrete graphics card No
• Embedded options available Yes
• Intel Trusted Execution Technology Yes
• Intel Virtualization Technology for Directed I/O (VT-d) Yes
• Intel Virtualization Technology (VT-x) Yes
• Intel VT-x with Extended Page Tables (EPT) Yes
• Idle States Yes
• Enhanced Intel SpeedStep Technology Yes
• Execute Disable Bit Yes
• Intel 64 Yes
• Efficient cores 4
• Performance cores 6
• Processor base power 65 W
• Maximum turbo power 121 W
• Performance-core base frequency 3.3 GHz
• Processor socket FCLGA1851
• Memory channels Dual-channel
• Intel® Thunderbolt 4 Yes
• Performance-core boost frequency 4.9 GHz
• Processor codename Arrow Lake
• Intel® AES New Instructions (Intel® AES-NI) Yes
• Thermal Monitoring Technologies Yes
• Processor operating modes 64-bit
• Memory clock speeds supported by processor 6400 MHz
• Memory types supported by processor DDR5-SDRAM
• Maximum internal memory supported by processor 192 GB
• Maximum number of PCI Express lanes 24
• On-board graphics card base frequency 300 MHz
• Number of displays supported (on-board graphics) 4
• On-board graphics card dynamic frequency (max) 1800 MHz
• On-board graphics card OpenGL version 4.5
• On-board graphics card ID 0x7D67
• On-board graphics card DirectX version 12.0
• Intel® Secure Key Yes
• Processor ARK ID 241070
• Intel® OS Guard Yes
• Intel® Quick Sync Video Technology Yes
• Intel® Turbo Boost Technology 2.0
• Supported instruction sets AVX 2.0
  SSE4.1
  SSE4.2
• Scalability 1S
• Box Yes
• On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz
• Intel® Boot Guard Yes
• Maximum number of DMI lanes 8
• Direct Media Interface (DMI) Revision 4.0
• Intel® Volume Management Device (VMD) Yes
• Intel® Speed Shift Technology Yes
• Mode-based Execute Control (MBE) Yes
• Intel® Control-flow Enforcement Technology (CET) Yes
• Intel® Standard Manageability (ISM) Yes
• Intel® Thread Director Yes
• On-board graphics card outputs supported Embedded DisplayPort (eDP) 1.4b
• Graphics output DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
• L2 cache 22528 KB
• On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 60 Hz
• On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz
• Xe-cores 2
• NPU performance up to 13 TOPs
• Neural processor unit (NPU) Intel AI Boost
• Total processor performance up to 23 TOPs
• AI software frameworks supported by NPU Windows ML
• Windows Studio effects support Yes
• Sparsity support Yes
• Warnings Ensure that the CPU is properly mounted in the CPU socket to avoid damage.
• GPU performance up to 4 TOPs
• AI software frameworks supported by CPU WebNN
• Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes

Särskilda hänvisningar

• ean13 5032037282352
