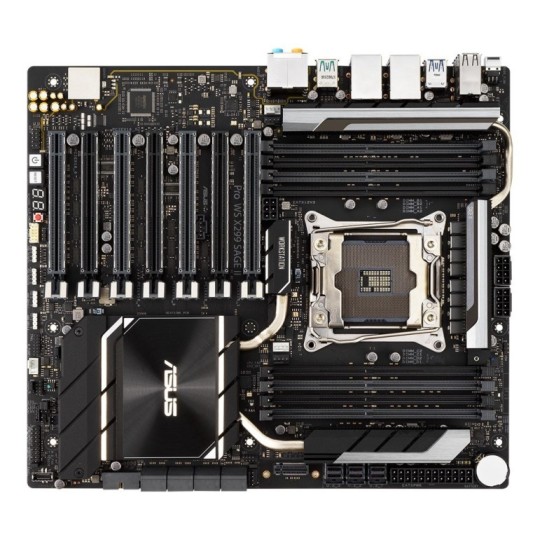

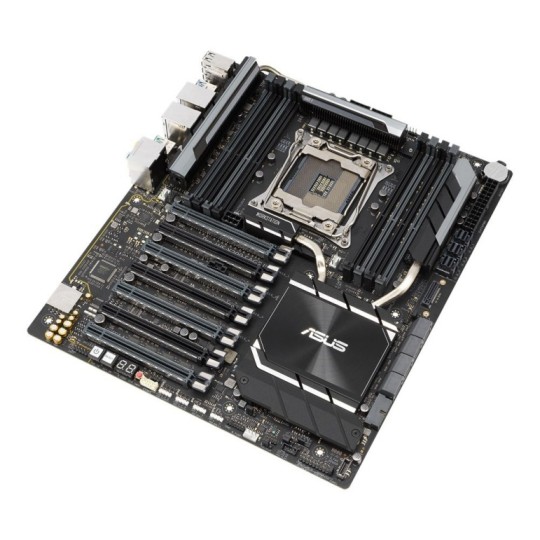

ASUS Pro WS X299 SAGE II Intel® X299 LGA 2066 (Socket R4) CEB

Datablad

• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 10 - 35 °C
• Harmonized System (HS) code 84733020
• Wi-Fi No
• Cables included SATA
• Ethernet LAN Yes
• USB 2.0 ports quantity 4
• Storage relative humidity (H-H) 20 - 90%
• Ethernet LAN (RJ-45) ports 2
• Processor manufacturer Intel
• Headphone outputs 1
• Audio output channels 7.1 channels
• Ethernet interface type 2.5 Gigabit Ethernet
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
• Maximum internal memory 256 GB
• Compatible processor series Intel® Core™ X-series
• Number of SATA III connectors 8
• Component for Workstation
• RAID levels 0
• Supported storage drive interfaces SATA
• RAID support Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
• Number of M.2 (M) slots 2
• Parallel processing technology support 4-Way SLI
• Trusted Platform Module (TPM) Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
• Motherboard chipset Intel® X299
• Processor socket LGA 2066 (Socket R4)
• LAN controller Intel I225-LM
• Motherboard form factor CEB
• PCI Express x16 (Gen 3.x) slots 7
• Number of memory slots 4
• Supported memory types DDR4-SDRAM
• Number of DIMM slots 8
• Supported memory clock speeds 2400
• Number of processors supported 1
• Processor number of cores supported 18
• Motherboard chipset family Intel
• Number of chassis fan connectors 2
• USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
• EPS power connector (8-pin) Yes
• ATX Power connector (24-pin) Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
• TPM connector Yes
• CPU fan connector Yes
• Clear CMOS button Yes
• Number of COM connectors 1
• Unbuffered memory Yes
• Height 287 mm
• Width 305 mm
• Weight 2.3 kg
• Depth 267 mm
• Compatible operating systems Windows 10 64-bit

Särskilda hänvisningar

• ean13 4718017322362
