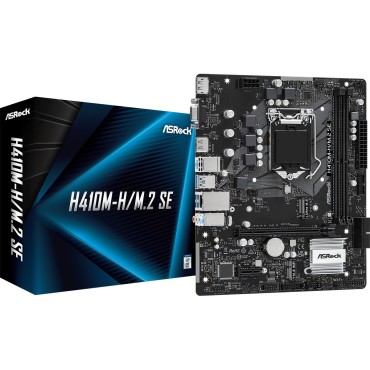

Asrock H410M-H/M.2 SE motherboard

Datablad

• Maximum resolution 4096 x 2304 pixels
• Windows operating systems supported Windows 10 x64
  Windows 11 x64
• Ethernet LAN Yes
• USB 2.0 ports quantity 2
• Ethernet LAN (RJ-45) ports 1
• Processor manufacturer Intel
• Audio output channels 7.1 channels
• Ethernet interface type Gigabit Ethernet
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
• VGA (D-Sub) ports quantity 1
• HDMI ports quantity 1
• Audio chip Realtek ALC897
• Maximum internal memory 64 GB
• USB 2.0 connectors 2
• Number of SATA III connectors 4
• RAID levels 5
• Supported storage drive interfaces M.2, SATA III
• Number of storage drives supported 4
• RAID support Yes
• 12V power connector Yes
• DisplayPorts quantity 1
• Wake-on-LAN ready Yes
• Memory slots type DIMM
• Motherboard chipset Intel® H370
• Processor socket LGA 1200
• Memory channels Dual-channel
• LAN controller Realtek 8111H
• Motherboard form factor micro ATX
• PCI Express x16 (Gen 3.x) slots 1
• PCI Express x1 (Gen 3.x) slots 1
• PS/2 ports quantity 1
• Number of memory slots 2
• Supported memory types DDR4-SDRAM
• Supported memory clock speeds 2133
• BIOS type UEFI
• Motherboard chipset family Intel
• ATX Power connector (24-pin) Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
• TPM connector Yes
• CPU fan connector Yes
• Number of COM connectors 1
• Unbuffered memory Yes
• Front panel audio connector Yes
• Number of M.2 (E) slots 1
• Width 226 mm
• Depth 188 mm
• Supported processors Intel® Core™ 10th generation

Särskilda hänvisningar

• ean13 4710483943539
