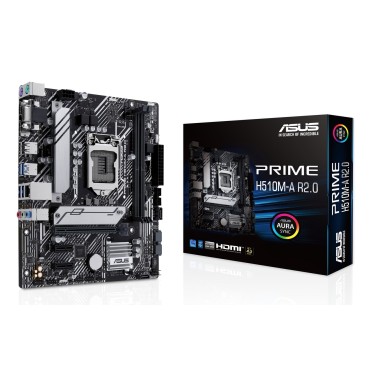

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX

Datablad

• Wi-Fi No
• Cables included SATA
• Windows operating systems supported Windows 10 x64
• Ethernet LAN Yes
• USB 2.0 ports quantity 2
• Ethernet LAN (RJ-45) ports 1
• Processor manufacturer Intel
• Headphone outputs 1
• Audio output channels 7.1 channels
• Microphone in Yes
• RGB LED pin header Yes
• Ethernet interface type Gigabit Ethernet
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
• VGA (D-Sub) ports quantity 1
• Line-in Yes
• HDMI ports quantity 1
• Maximum internal memory 64 GB
• Number of HDDs supported 4
• Supported processor sockets LGA 1200 (Socket H5)
• Compatible processor series Intel® Pentium® Gold
• USB 2.0 connectors 3
• Audio connector Yes
• Number of SATA III connectors 4
• Supported storage drive interfaces M.2, SATA III
• Number of storage drives supported 5
• 12V power connector Yes
• DisplayPorts quantity 1
• Number of M.2 (M) slots 1
• Parallel processing technology support Not supported
• Memory slots type DIMM
• Motherboard chipset Intel H510
• Processor socket LGA 1200 (Socket H5)
• Memory channels Dual-channel
• Motherboard form factor micro ATX
• PCI Express x1 (Gen 3.x) slots 2
• PS/2 ports quantity 2
• Supported storage drive types HDD & SSD
• Number of memory slots 2
• Supported memory types DDR4-SDRAM
• Supported memory clock speeds 2666
• BIOS type UEFI AMI
• Motherboard chipset family Intel
• Number of chassis fan connectors 2
• EPS power connector (8-pin) Yes
• ATX Power connector (24-pin) Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
• TPM connector Yes
• CPU fan connector Yes
• Number of COM connectors 1
• Unbuffered memory Yes
• S/PDIF out connector Yes
• Front panel audio connector Yes
• Supported memory clock speed (max) 3200 MHz
• Width 226 mm
• Depth 211 mm
• Package width 260 mm
• Package height 51.5 mm
• Package weight 1.03 kg
• Package depth 270 mm
• Warnings Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge.
• ECC сompatibility Non-ECC

Särskilda hänvisningar

• ean13 4711387234891
