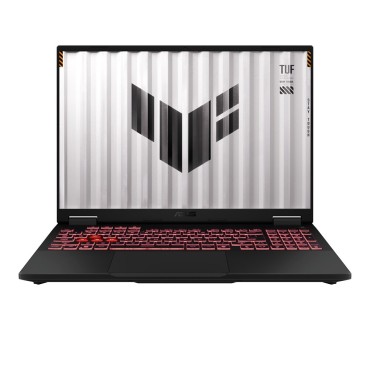

ASUS TUF Gaming A16 FA608UH-R7165 AMD Ryzen™ 7 260 Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 505

Datablad

• Colour name Jaeger Gray
• Fast charging Yes
• Bluetooth Yes
• Touchscreen No
• AC adapter output voltage 20 V
• AC adapter output current 12 A
• Display diagonal 40.6 cm (16")
• Number of battery cells 4
• Wi-Fi standards Wi-Fi 6E (802.11ax)
• Top Wi-Fi standard Wi-Fi 6E (802.11ax)
• Bluetooth version 5.3
• Keyboard layout QWERTY
• Ethernet LAN Yes
• USB 2.0 ports quantity 1
• Internal memory 16 GB
• Storage media SSD
• Ethernet LAN data rates 10
• Ethernet LAN (RJ-45) ports 1
• Processor model 260
• Processor manufacturer AMD
• Processor frequency 3.8 GHz
• Processor family AMD Ryzen™ 7
• Display resolution 1920 x 1080 pixels
• Operating system installed N
• Built-in microphone Yes
• Card reader integrated No
• DC-in jack Yes
• Maximum refresh rate 165 Hz
• HDMI version 2.1
• HDMI ports quantity 1
• Mobile network connection No
• Processor cores 8
• Display brightness 300 cd/m²
• Maximum internal memory 64 GB
• Numeric keypad Yes
• Audio system Dolby Atmos
• Height (front) 1.79 cm
• Antenna type 2x2
• Password protection Yes
• Infrared (IR) camera Yes
• Face recognition Yes
• NVMe Yes
• SSD form factor M.2
• SSD capacity 512 GB
• Internal memory type DDR5-SDRAM
• AC adapter frequency 50 - 60 Hz
• AC adapter input voltage 100 - 240 V
• SSD interface PCI Express 4.0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
• AC adapter power 240 W
• HD type WUXGA
• Pointing device Touchpad
• Keyboard backlit colour RGB
• Combo headphone/mic port Yes
• Native aspect ratio 16:10
• USB Type-C DisplayPort Alternate Mode Yes
• Memory clock speed 5600 MHz
• Discrete graphics card memory 8 GB
• Front camera Yes
• Processor cache 16 MB
• Processor threads 16
• Processor boost frequency 5.1 GHz
• Processor cache type L2 & L3
• Processor generation AMD Ryzen 200 Series
• On-board graphics card model AMD Radeon 780M
• Discrete graphics card model NVIDIA GeForce RTX 5050
• On-board graphics card Yes
• Discrete graphics card Yes
• On-board graphics card family AMD Radeon
• Memory slots 2x SO-DIMM
• Memory form factor SO-DIMM
• Introduction year 2025
• Anti-glare screen Yes
• Panel type IPS-Level
• Colour gamut 100%
• RGB colour space sRGB
• Number of SSDs installed 1
• Total SSDs capacity 512 GB
• Total storage capacity 512 GB
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
• Discrete graphics memory type GDDR7
• Discrete GPU manufacturer NVIDIA
• Optical drive type No
• On-board GPU manufacturer AMD
• USB4 Gen 3x2 ports quantity 1
• NVIDIA G-SYNC Yes
• Number of built-in speakers 2
• Front camera HD type Full HD
• Fast charging time (50%) 30 min
• Keyboard backlit Yes
• Height (rear) 2.57 cm
• Contrast ratio (typical) 1000:1
• WWAN Not installed
• Windows Hello Yes
• Keyboard backlit zone 1-zone RGB
• Battery technology Lithium-Ion (Li-Ion)
• Product colour Black
• Product type Laptop
• Battery capacity 90 Wh
• Width 354 mm
• Weight 2.2 kg
• Depth 269 mm
• NPU performance up to 16 TOPs
• Neural processor unit (NPU) AMD Ryzen AI
• Total processor performance up to 38 TOPs
• Warnings Keep out of the reach of children.
• Hazard pictogram(s) GHS08: Health hazard
• USB Type-C charging port Yes
• USB Power Delivery (USB PD) Yes
• USB Type-C required charging power (min) 45 W
• USB Type-C required charging power (max) 100 W
• Copilot key Yes

Särskilda hänvisningar

• ean13 4711636114080
