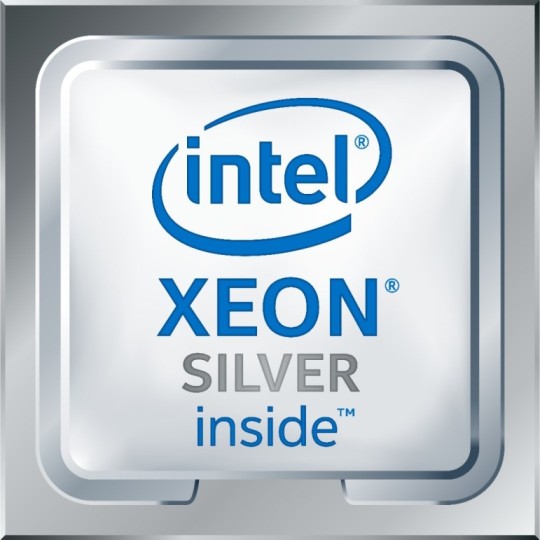

Intel Xeon 4214R processor 2.4 GHz 16.5 MB

Datablad

• Harmonized System (HS) code 85423119
• Cooler included No
• Export Control Classification Number (ECCN) 5A992C
• Commodity Classification Automated Tracking System (CCATS) G077159
• Processor model 4214R
• Processor manufacturer Intel
• Processor family Intel Xeon Silver
• Processor cores 12
• Maximum internal memory 1 TB
• Thermal Design Power (TDP) 100 W
• Component for Server/workstation
• Status Launched
• Launch date Q1'20
• Market segment Server
• ECC Yes
• PCI Express CEM revision 3.0
• PCI Express slots version 3.0
• Processor lithography 14 nm
• Processor cache 16.5 MB
• Processor threads 24
• Processor boost frequency 3.5 GHz
• Processor generation 2nd Generation Intel® Xeon® Scalable
• On-board graphics card model Not available
• Discrete graphics card model Not available
• On-board graphics card No
• Discrete graphics card No
• Embedded options available Yes
• Intel Trusted Execution Technology Yes
• Intel Virtualization Technology for Directed I/O (VT-d) Yes
• Intel Virtualization Technology (VT-x) Yes
• Intel VT-x with Extended Page Tables (EPT) Yes
• Enhanced Intel SpeedStep Technology Yes
• Execute Disable Bit Yes
• Intel 64 Yes
• Intel® vPro™ Platform Eligibility Yes
• Processor socket LGA 3647 (Socket P)
• Memory channels Hexa-channel
• Supported memory types DDR4-SDRAM
• Processor codename Cascade Lake
• Intel® AES New Instructions (Intel® AES-NI) Yes
• Intel® Hyper Threading Technology (Intel® HT Technology) Yes
• Processor operating modes 64-bit
• Memory clock speeds supported by processor 2400 MHz
• Memory types supported by processor DDR4-SDRAM
• Maximum internal memory supported by processor 1.02 TB
• Maximum number of PCI Express lanes 48
• Processor ARK ID 197100
• Intel® Turbo Boost Technology 2.0
• Supported instruction sets AVX
  AVX-512
  AVX 2.0
  SSE4.2
• Scalability 2S
• Processor package size 76mm x 56.5mm
• Processor base frequency 2.4 GHz
• Box No
• Intel® Transactional Synchronization Extensions Yes
• Intel Turbo Boost Max Technology 3.0 No
• Intel® Deep Learning Boost (Intel® DL Boost) Yes
• Intel® Volume Management Device (VMD) Yes
• Intel® Speed Shift Technology Yes
• Mode-based Execute Control (MBE) Yes
• Servicing status Baseline Servicing
• Intel® Optane™ DC Persistent Memory Supported No
• Number of UPI links 2
• Memory speed (max) 2400 MHz
• Tcase 79 °C
• Intel® Resource Director Technology (Intel® RDT) Yes
• AVX-512 Fused Multiply-Add (FMA) units 1
• Intel® Speed Select technology - Performance Profile (Intel® SST-PP) No
• Intel Speed Select Technology (SST) No
• Intel® Run Sure Technology No
• Intel® Optane™ DC Persistent Memory technology No
• Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) No
• Product type Processor
• Package width 43 mm
• Package height 112 mm
• Package depth 137 mm
