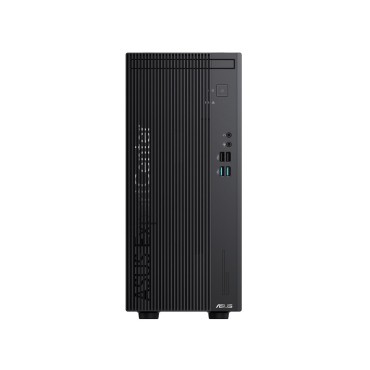

ASUS ExpertCenter D5 Mini Tower D501MER-514500009X Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Black

Datablad

• Bluetooth Yes
• Wi-Fi Yes
• Market positioning Business
• Display included No
• Ethernet LAN Yes
• USB 2.0 ports quantity 4
• Internal memory 16 GB
• Storage media SSD
• Ethernet LAN data rates 1000
• Ethernet LAN (RJ-45) ports 1
• Processor model i5-14500
• Processor manufacturer Intel
• Processor family Intel® Core™ i5
• Operating system installed Windows 11 Pro
• Headphone outputs 1
• Audio output channels 7.1 channels
• HDMI version 1.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
• VGA (D-Sub) ports quantity 1
• HDMI ports quantity 1
• Mobile network connection No
• Processor cores 14
• Maximum internal memory 64 GB
• Audio system High Definition Audio
• Power supply 180 W
• Password protection Yes
• Cabling technology 10/100/1000Base-T(X)
• NVMe Yes
• SSD form factor M.2
• SSD capacity 512 GB
• Internal memory type DDR5-SDRAM
• SSD interface PCI Express 4.0
• Cable lock slot type Kensington
• Cable lock slot Yes
• Combo headphone/mic port Yes
• Processor cache 24 MB
• Processor threads 20
• Processor boost frequency 5 GHz
• Processor cache type Smart Cache
• Processor generation Intel® Core™ i5 (14th gen)
• On-board graphics card model Intel UHD Graphics 770
• Discrete graphics card model Not available
• On-board graphics card Yes
• Discrete graphics card No
• On-board graphics card family Intel® UHD Graphics
• Number of SSDs installed 1
• Total SSDs capacity 512 GB
• Total storage capacity 512 GB
• Number of storage drives installed 1
• Password protection type HDD
• Trusted Platform Module (TPM) Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
• Efficient-core Max Turbo Frequency 3.7 GHz
• Efficient cores 8
• Performance cores 6
• Processor base power 65 W
• Maximum turbo power 154 W
• Performance-core Max Turbo Frequency 5 GHz
• Motherboard chipset Intel B760
• Operating system architecture 64-bit
• Chassis type Mini Tower
• Performance-core base frequency 2.6 GHz
• Efficient-core base frequency 1.9 GHz
• On-board GPU manufacturer Intel
• Powered by ASUS
• Product colour Black
• Product type PC
• Height 347 mm
• Width 155 mm
• Weight 6 kg
• Depth 296 mm
• Warnings Avoid contact with water and store in a dry place.

Särskilda hänvisningar

• ean13 4711387884027
