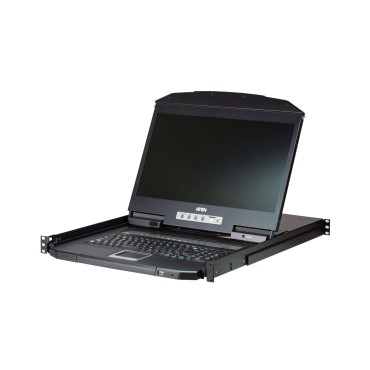

ATEN 16P Short Depth Single Rail LCD KVM SW

Datablad

• Power supply type AC
• Material Plastic
• Display type LED
• Storage temperature (T-T) -20 - 60 °C
• Operating temperature (T-T) 0 - 40 °C
• Master (outer) case length 718 mm
• Master (outer) case gross weight 13.9 kg
• Master (outer) case width 668 mm
• Products per master (outer) case 1 pc(s)
• Master (outer) case height 135 mm
• Operating relative humidity (H-H) 0 - 80%
• LED indicators Yes
• Display TFT-LCD
• Display diagonal 47 cm (18.5")
• Maximum resolution 1366 x 768 pixels
• Push button Yes
• Plug and Play Yes
• Keyboard layout QWERTY
• Display resolution 1366 x 768 pixels
• Input current 1 A
• 3.5 mm (1/8-inch) in Yes
• Display number of colours 16.78 million colours
• Display brightness 250 cd/m²
• Rack capacity 1U
• Rack mounting Yes
• Viewing angle, horizontal 170°
• Viewing angle, vertical 160°
• On Screen Display (OSD) Yes
• Hot-Plug support Yes
• AC adapter frequency 50 / 60 Hz
• AC adapter input voltage 100 - 240 V
• Master (outer) case net weight 11.1 kg
• Keyboard language US English
• Video port type VGA
• Pixel pitch 0.3 x 0.3 mm
• Number of computers controlled 16
• Hot keys Yes
• Mouse port type USB, PS/2
• Contrast ratio (typical) 1000:1
• Built-in KVM switch Yes
• Product colour Black
• Height 631.7 mm
• Width 480.6 mm
• Weight 11.1 kg
• Depth 42.8 mm
• Package width 668 mm
• Package height 135 mm
• Package weight 13.9 kg
• Package depth 718 mm
• Warnings Ensure the unit is properly earthed before use.
• KVM switch ports quantity 16

Särskilda hänvisningar

• ean13 4719264648984
