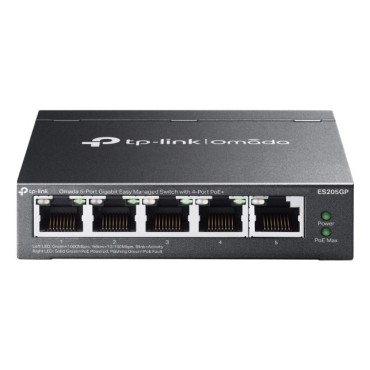

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Datablad

• Power source AC/DC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• Package type Box
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• User guide Yes
• Wall mountable Yes
• DC input voltage 53.5 V
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Networking standards IEEE 802.3x
• Total Power over Ethernet (PoE) budget 65 W
• Power over Ethernet (PoE) Yes
• Power over Ethernet (PoE) ports quantity 4
• Reset button Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• Power over Ethernet (PoE) power per port 30 W
• Transmission distance (max) 0.25 km
• Jumbo frames support Yes
• VLAN support Yes
• IGMP snooping Yes
• Virtual LAN features MTU VLAN
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 4
• Flow control support Yes
• Auto-negotiation Yes
• MAC address table 8000 entries
• Switch type Managed
• Port mirroring Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 5
• Forwarding rate 7.4 Mpps
• Switching capacity 10 Gbit/s
• Link aggregation Yes
• Store-and-forward Yes
• Jumbo frames 15
• 10G support No
• DHCP features DHCP client
• Packet buffer memory 4 MB
• Fanless Yes
• Loop protection Yes
• Product colour Black
• Height 25 mm
• Width 100 mm
• Depth 98 mm
• Compliance certificates Federal Communications Commission (FCC)
• Warnings The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.

Särskilda hänvisningar

• ean13 8885020620931
