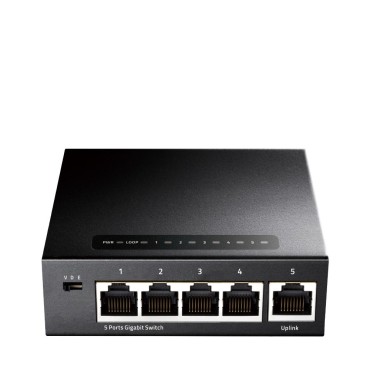

Cudy GS105 network switch Gigabit Ethernet (10/100/1000) Black

Datablad

• Power source AC/DC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) -10 - 50 °C
• Package type Box
• Master (outer) case length 320 mm
• Master (outer) case gross weight 17 kg
• Master (outer) case width 505 mm
• Products per master (outer) case 40 pc(s)
• Master (outer) case height 400 mm
• AC input voltage 100 - 240 V
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Power
• Manual Yes
• DC input voltage 5 V
• Cables included DC
• Throughput 7.44 Mpps
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Ethernet LAN data rates 10,100,1000 Mbit/s
• Operating altitude 0 - 3048 m
• Networking standards IEEE 802.3ab
• Rack mounting No
• Power over Ethernet (PoE) No
• Mean time between failures (MTBF) 100000 h
• Full duplex Yes
• Cable types supported Cat8.1
• Copper ethernet cabling technology 1000BASE-TX
• Jumbo frames support Yes
• VLAN support Yes
• Auto MDI/MDI-X Yes
• Flow control support Yes
• Auto-negotiation Yes
• MAC address table 1000 entries
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 5
• Switching capacity 10 Gbit/s
• Store-and-forward Yes
• Jumbo frames 2000
• Half duplex Yes
• MAC address auto-learning supported Yes
• Packet buffer memory 1 MB
• MAC address auto-aging supported Yes
• Product colour Black
• Height 26 mm
• Width 100 mm
• Weight 200 g
• Depth 70 mm
• Package width 175 mm
• Package height 63 mm
• Package weight 400 g
• Package depth 120 mm
• Warnings Do not open the case or try to repair it yourself.

Särskilda hänvisningar

• ean13 6971690790431
