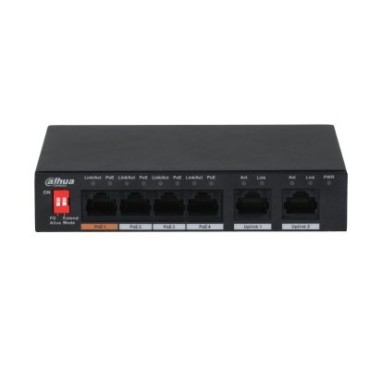

Dahua Technology PFS3006-4ET-60 Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Datablad

• Power source DC
• Storage temperature (T-T) -20 - 70 °C
• Operating temperature (T-T) -10 - 55 °C
• Operating relative humidity (H-H) 5 - 95%
• LED indicators Yes
• Manual Yes
• Stackable No
• Wall mountable Yes
• DC input voltage 53 V
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 95%
• Ethernet LAN data rates 10,100 Mbit/s
• Rack mounting No
• Total Power over Ethernet (PoE) budget 60 W
• Power over Ethernet (PoE) Yes
• Power over Ethernet (PoE) ports quantity 4
• Power connector DC-in jack
• Auto MDI/MDI-X Yes
• MAC address table 2000 entries
• Switch type Unmanaged
• Switch layer L2
• Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
• Basic switching RJ-45 Ethernet ports quantity 6
• Forwarding rate 0.89 Mpps
• Switching capacity 1.8 Gbit/s
• 10G support No
• Packet buffer memory 1 MB
• Fast Ethernet (copper) ports quantity 6
• Product colour Black
• Height 26 mm
• Width 130 mm
• Weight 300 g
• Depth 85 mm
• Package width 267 mm
• Package height 77 mm
• Housing material Metal
• Package weight 900 g
• Package depth 239 mm

Särskilda hänvisningar

• ean13 6923172500717
