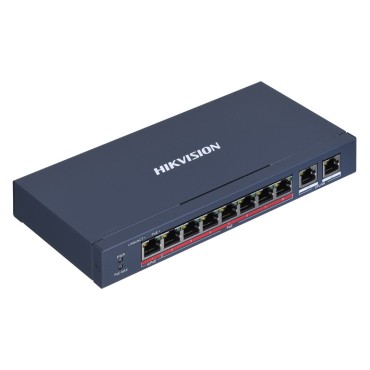

Hikvision DS-3E0310HP-E network links Non-managed Fast Ethernet (10/100) PoE support Blue

Datablad

• Storage temperature (T-T) -40 - 85 °C
• Operating temperature (T-T) -10 - 55 °C
• Operating relative humidity (H-H) 5 - 95%
• LED indicators Yes
• Power consumption (typical) 10 W
• Power consumption (max) 120 W
• DC input voltage 48 V
• Storage relative humidity (H-H) 5 - 95%
• Input current 2.5 A
• Networking standards IEEE 802.3af
• Total Power over Ethernet (PoE) budget 110 W
• Power over Ethernet (PoE) Yes
• Power over Ethernet (PoE) ports quantity 8
• Power over Ethernet (PoE) power per port 60 W
• Full duplex Yes
• Auto MDI/MDI-X Yes
• MAC address table 16000 entries
• Switch type Unmanaged
• Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
• Basic switching RJ-45 Ethernet ports quantity 8
• Forwarding rate 4.166 Mpps
• Switching capacity 5.6 Gbit/s
• Store-and-forward Yes
• 10G support No
• Gigabit Ethernet (copper) ports quantity 2
• Product colour Blue
• Height 27.8 mm
• Width 217.6 mm
• Weight 550 g
• Depth 103.3 mm
• Housing material Metal
• Package weight 1.22 kg
• Warnings Do not open the case or try to repair it yourself.

Särskilda hänvisningar

• ean13 6954273693350
