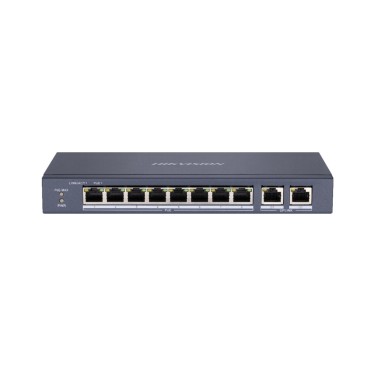

Hikvision DS-3E0310P-E/M network links Not managed L2 Fast Ethernet (10/100) PoE support Black

Datablad

• Storage temperature (T-T) -40 - 85 °C
• Operating temperature (T-T) -10 - 40 °C
• Operating relative humidity (H-H) 5 - 95%
• LED indicators Yes
• Sustainability certificates RoHS
• Power consumption (max) 65 W
• Sustainability compliance Yes
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 95%
• Ethernet LAN data rates 10,100,1000 Mbit/s
• Networking standards IEEE 802.3u
• Total Power over Ethernet (PoE) budget 60 W
• Power over Ethernet (PoE) Yes
• Full duplex Yes
• Copper ethernet cabling technology 100BASE-TX
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 8
• MAC address table 16000 entries
• Switch type Unmanaged
• Switch layer L2
• Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
• Basic switching RJ-45 Ethernet ports quantity 10
• Forwarding rate 4.1664 Mpps
• Switching capacity 5.6 Gbit/s
• Store-and-forward Yes
• 10G support No
• Gigabit Ethernet (copper) ports quantity 2
• Fast Ethernet (copper) ports quantity 8
• Product colour Black
• Height 27.8 mm
• Width 217.6 mm
• Weight 555 g
• Depth 103.3 mm
• Housing material Metal
• Package weight 1.2 kg
• Warnings The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.

Särskilda hänvisningar

• ean13 6941264044413
