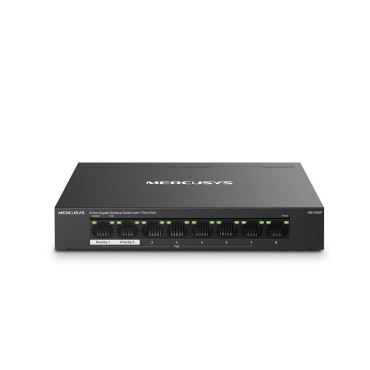

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+

Datablad

• Power source AC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• AC input voltage 220 V
• AC input frequency 50 Hz
• Operating relative humidity (H-H) 10 - 90%
• Power consumption (typical) 5.07 W
• Quick start guide Yes
• Power consumption (max) 77.33 W
• Stackable No
• Wall mountable Yes
• Cables included AC
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 95%
• Input current 1.31 A
• Networking standards IEEE 802.3at
• Rack mounting No
• Total Power over Ethernet (PoE) budget 65 W
• Power over Ethernet (PoE) Yes
• Web-based management Yes
• Power over Ethernet (PoE) power per port 30 W
• Full duplex Yes
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 7
• Heat dissipation 262.922 BTU/h
• Flow control support Yes
• MAC address table 8000 entries
• Policy-based routing Yes
• Switch type Managed
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 8
• Store-and-forward Yes
• 10G support No
• Half duplex Yes
• Traffic classification Yes
• Product colour Black
• Height 27 mm
• Width 171 mm
• Depth 98 mm
• Housing material Metal
• Input voltage 53.5 V

Särskilda hänvisningar

• ean13 6957939001209
