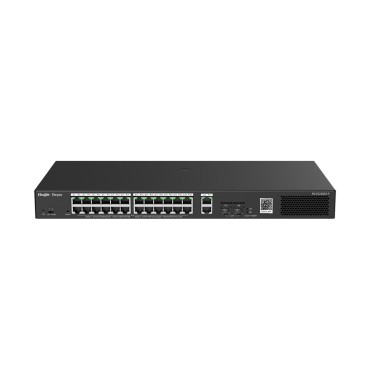

Ruijie Networks RG-ES228GS-P network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Datablad

• Power source AC/PoE
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• AC input voltage 100 - 240 V
• AC input frequency 50/60 Hz
• Operating relative humidity (H-H) 10 - 90%
• Noise level 40 dB
• Power consumption (typical) 391 W
• Warranty period 3 year(s)
• Stackable No
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 95%
• Flash memory 8 MB
• Security algorithms HTTPS
• Operating altitude -500 - 5000 m
• Input current 6 A
• Rack mounting Yes
• Total Power over Ethernet (PoE) budget 370 W
• Power over Ethernet (PoE) Yes
• Power over Ethernet (PoE) ports quantity 24
• Number of fans 1 fan(s)
• Mean time between failures (MTBF) 200000 h
• Reset button Yes
• Cloud-managed Yes
• Multicast support Yes
• Jumbo frames support Yes
• VLAN support Yes
• Number of VLANs 16
• SFP module slots quantity 2
• Flow control support Yes
• MAC address table 8000 entries
• Switch type Managed
• Broadcast storm control Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 26
• Forwarding rate 41.664 Mpps
• Switching capacity 56 Gbit/s
• Jumbo frames 10000
• 10G support No
• DHCP features DHCP snooping
• Packet buffer memory 4.1 MB
• Loop protection Yes
• Airflow direction Front-to-back airflow
• Product colour Black
• Height 44 mm
• Width 440 mm
• Weight 4 kg
• Depth 214.9 mm
• Housing material Metal
• Compliance certificates CE

Särskilda hänvisningar

• ean13 6971693278691
