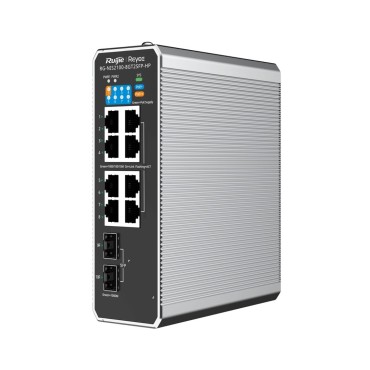

Ruijie Networks RG-NIS2100 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Stainless steel

Datablad

• Power source DC/PoE
• Storage temperature (T-T) -40 - 85 °C
• Operating temperature (T-T) -40 - 75 °C
• Operating relative humidity (H-H) 10 - 90%
• Manual Yes
• Power consumption (max) 312 W
• Warranty period 5 year(s)
• Wall mountable Yes
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 95%
• Operating altitude -500 - 5000 m
• Networking standards IEEE 802.1Q
• Rack mounting Yes
• Total Power over Ethernet (PoE) budget 300 W
• Power over Ethernet (PoE) Yes
• Power over Ethernet (PoE) ports quantity 8
• Number of fans 0 fan(s)
• Mean time between failures (MTBF) 200000 h
• Reset button Yes
• Web-based management Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• DC voltage range 46 - 57 V
• Surge protection voltage 6 kV
• Jumbo frames support Yes
• VLAN support Yes
• Power over Ethernet (PoE) type supported PoE+
• Surge protection Yes
• Power over Ethernet plus (PoE+) ports quantity 8
• Heat dissipation 1067.04 BTU/h
• Number of VLANs 16
• System event log Yes
• Rack mount kit Yes
• MAC address table 8000 entries
• Installed SFP modules quantity 2
• Switch type Managed
• Switch layer L2
• Port mirroring Yes
• Broadcast storm control Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 8
• Forwarding rate 14.8 Mpps
• Switching capacity 20 Gbit/s
• Jumbo frames 10000
• Number of power supply units 1
• 10G support No
• DHCP features DHCP snooping
• DIN rail mounting Yes
• Power supply location Internal
• Product colour Stainless steel
• Height 30 mm
• Width 50 mm
• Weight 790 g
• Depth 155 mm
• Housing material Metal
• Certification IEC/EN 61000-4-2
  IEC/EN 61000-4-3
  IEC/EN 61000-4-4
  IEC/EN 61000-4-5
  IEC/EN 61000-4-6
  IEC/EN 61000-4-8
• Package weight 1.1 kg
• Compliance certificates Federal Communications Commission (FCC)
• Power saving mode (EEE) Yes
• Power over Ethernet 4PPoE (PoE++) ports quantity 1
• Ethernet Ring Protection Switching (ERPS) Yes

Särskilda hänvisningar

• ean13 6976915003457
