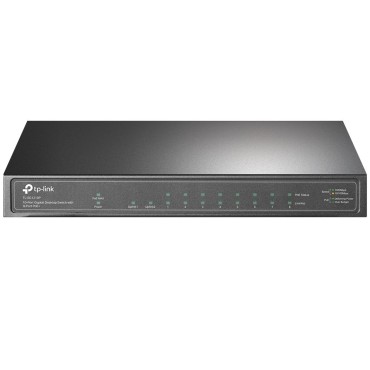

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

Datablad

• Power source DC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 50 °C
• Harmonized System (HS) code 85176990
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Manual Yes
• Quick start guide Yes
• Power consumption (max) 78.13 W
• DC input voltage 53.5 V
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Input current 1.31 A
• Networking standards IEEE 802.3x
• Total Power over Ethernet (PoE) budget 63 W
• Power over Ethernet (PoE) Yes
• Quality of Service (QoS) support Yes
• Copper ethernet cabling technology 10BASE-T
• IGMP snooping Yes
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 8
• Heat dissipation 266.42 BTU/h
• SFP module slots quantity 1
• Auto-negotiation Yes
• MAC address table 4000 entries
• Switch type Unmanaged
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 9
• Switching capacity 20 Gbit/s
• Store-and-forward Yes
• Fiber ethernet cabling technology 1000BASE-X
• 10G support No
• Gigabit Ethernet (copper) ports quantity 9
• MAC address auto-learning supported Yes
• Packet buffer memory 14.88 MB
• Fanless Yes
• MAC address auto-aging supported Yes
• Fiber type Single-mode
• Product colour Grey
• Height 26 mm
• Width 209 mm
• Depth 126 mm
• Package width 240 mm
• Package height 70 mm
• Housing material Metal
• Certification CE, FCC, RoHS
• Package weight 1.24 kg
• Package depth 315 mm
• Warnings Do not open the case or try to repair it yourself.

Särskilda hänvisningar

• ean13 6935364052980
