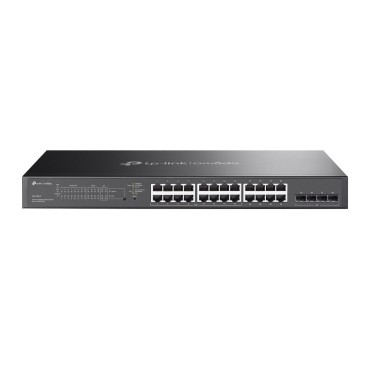

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

Datablad

• Power source AC/PoE
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• AC input voltage 100 - 240 V
• AC input frequency 50/60 Hz
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Power consumption (max) 184.7 W
• Storage relative humidity (H-H) 5 - 90%
• Networking standards IEEE 802.3at
• Rack mounting Yes
• Total Power over Ethernet (PoE) budget 150 W
• Power over Ethernet (PoE) Yes
• Web-based management Yes
• Cloud-managed Yes
• Password protection Yes
• Quality of Service (QoS) support Yes
• Multicast support Yes
• Power over Ethernet (PoE) power per port 30 W
• Jumbo frames support Yes
• VLAN support Yes
• MAC address filtering Yes
• IGMP snooping Yes
• Virtual LAN features Tagged VLAN
• Access Control List (ACL) Yes
• Power over Ethernet plus (PoE+) ports quantity 16
• Heat dissipation 628 BTU/h
• Number of VLANs 4000
• SFP module slots quantity 4
• Flow control support Yes
• Auto-negotiation Yes
• MAC address table 8000 entries
• Switch type Managed
• Switch layer L2/L2+
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 24
• Forwarding rate 41.66 Mpps
• Switching capacity 56 Gbit/s
• Link aggregation Yes
• Jumbo frames 9000
• 10G support No
• Spanning tree protocol Yes
• DHCP features DHCP server
• Packet buffer memory 4.1 MB
• Fanless Yes
• ARP inspection Yes
• Product colour Grey
• Height 44 mm
• Width 440 mm
• Depth 220 mm

Särskilda hänvisningar

• ean13 8885020620832
