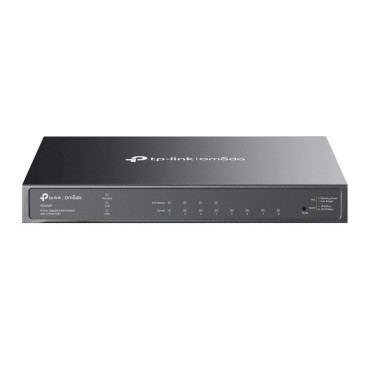

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

Datablad

• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) 0 - 40 °C
• Package type Box
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Manual Yes
• Power consumption (max) 77.3 W
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Security algorithms 802.1x RADIUS
• Networking standards IEEE 802.1x
• Rack mounting Yes
• Power over Ethernet (PoE) Yes
• Web-based management Yes
• Quality of Service (QoS) support Yes
• Multicast support Yes
• IPv4 & IPv6 features IPv6 ping
• Jumbo frames support Yes
• Management protocols SNMPv1/v2c/v3
• VLAN support Yes
• Rate limiting Yes
• MAC address filtering Yes
• IGMP snooping Yes
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 4
• Heat dissipation 263.6 BTU/h
• Number of VLANs 4094
• System event log Yes
• Flow control support Yes
• Auto-negotiation Yes
• MAC address table 8000 entries
• Switch type Managed
• Switch layer L2/L2+
• Port mirroring Yes
• Broadcast storm control Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 8
• Forwarding rate 11.9 Mpps
• Switching capacity 16 Gbit/s
• Link aggregation Yes
• Jumbo frames 9000
• 10G support No
• Spanning tree protocol Yes
• Authentication MAC-based authentication, Web-based authentication
• Authentication type RADIUS
• DHCP features DHCP snooping
• Number of queues 8
• Packet buffer memory 4.1 MB
• Fanless Yes
• ARP inspection Yes
• Product colour Black
• Height 26 mm
• Width 209 mm
• Depth 126 mm
• Certification CE, FCC, RoHS
• Warnings Do not open the case or try to repair it yourself.

Särskilda hänvisningar

• ean13 6935364072957
