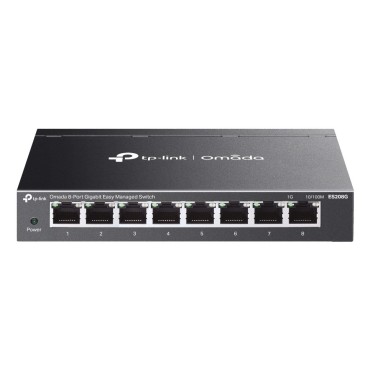

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Datablad

• Power source DC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) -5 - 45 °C
• Package type Box
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• AC adapter included Yes
• Power consumption (max) 2.7 W
• User guide Yes
• Stackable No
• Wall mountable Yes
• DC input voltage 5 V
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Flash memory 64 MB
• Input current 0.6 A
• Networking standards IEEE 802.1ab
• Firmware upgradeable Yes
• Rack mounting No
• Power over Ethernet (PoE) No
• Mean time between failures (MTBF) 1141726 h
• Web-based management Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• Surge protection voltage 6 kV
• Jumbo frames support Yes
• VLAN support Yes
• IGMP snooping Yes
• Virtual LAN features Tagged VLAN
• Surge protection Yes
• Auto MDI/MDI-X Yes
• Heat dissipation 9.09 BTU/h
• Number of VLANs 32
• Flow control support Yes
• Auto-negotiation Yes
• MAC address table 8000 entries
• Switch type Managed
• Switch layer L2
• Port mirroring Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 8
• Forwarding rate 11.9 Mpps
• Switching capacity 16 Gbit/s
• Link aggregation Yes
• Store-and-forward Yes
• Jumbo frames 15000
• 10G support No
• Gigabit Ethernet (copper) ports quantity 8
• DHCP features DHCP client
• Packet buffer memory 4 MB
• Fanless Yes
• Loop protection Yes
• Queue scheduling algorithms Weighted Round Robin (WRR)
• Product colour Black
• Height 25.4 mm
• Width 158 mm
• Depth 100.7 mm
• Compliance certificates CE
• Zero Touch Provisioning (ZTP) Yes
• Unified static configuration Yes
• Fast leave Yes

Särskilda hänvisningar

• ean13 1210002600668
