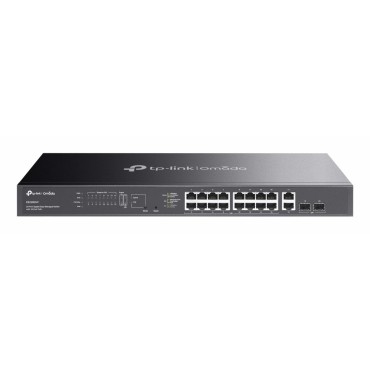

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Datablad

• Power source AC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) -5 - 50 °C
• Package type Box
• AC input voltage 100 - 240 V
• AC input frequency 50/60 Hz
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Noise level 41.5 dB
• Power consumption (max) 289.7 W
• User guide Yes
• Stackable No
• Cables included AC
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Flash memory 64 MB
• Networking standards IEEE 802.1ab
• Firmware upgradeable Yes
• Rack mounting Yes
• Total Power over Ethernet (PoE) budget 250 W
• Power over Ethernet (PoE) Yes
• Power connector AC-in jack
• Number of fans 2 fan(s)
• Mean time between failures (MTBF) 310550.7 h
• Web-based management Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• Power over Ethernet (PoE) power per port 30 W
• Surge protection voltage 6 kV
• Jumbo frames support Yes
• VLAN support Yes
• Power over Ethernet (PoE) type supported PoE+
• IGMP snooping Yes
• Virtual LAN features Port-based VLAN
• Surge protection Yes
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 16
• Heat dissipation 984.88 BTU/h
• Number of VLANs 32
• SFP module slots quantity 2
• Flow control support Yes
• Rack mount kit Yes
• Auto-negotiation Yes
• MAC address table 8000 entries
• Switch type Managed
• Switch layer L2
• Port mirroring Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 18
• Forwarding rate 29.76 Mpps
• Switching capacity 40 Gbit/s
• Link aggregation Yes
• Store-and-forward Yes
• Jumbo frames 15000
• 10G support No
• Gigabit Ethernet (copper) ports quantity 18
• DHCP features DHCP client
• Packet buffer memory 4 MB
• Loop protection Yes
• Queue scheduling algorithms Weighted Round Robin (WRR)
• Product colour Black
• Height 44 mm
• Width 440 mm
• Depth 180 mm
• Compliance certificates CE
• Zero Touch Provisioning (ZTP) Yes
• Unified static configuration Yes
• Fast leave Yes

Särskilda hänvisningar

• ean13 8885020625943
