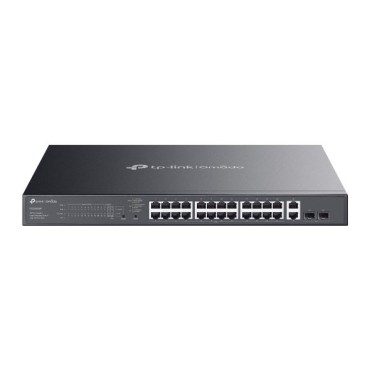

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Datablad

• Power source AC
• Storage temperature (T-T) -40 - 70 °C
• Operating temperature (T-T) -5 - 45 °C
• AC input voltage 100 - 240 V
• AC input frequency 50/60 Hz
• Operating relative humidity (H-H) 10 - 90%
• LED indicators Yes
• Manual Yes
• Noise level 46.2 dB
• Quick start guide Yes
• Power consumption (max) 454.8 W
• Cables included AC
• Power supply included Yes
• Storage relative humidity (H-H) 5 - 90%
• Flash memory 64 MB
• Ethernet LAN data rates 10,100,1000 Mbit/s
• Networking standards IEEE 802.3u
• Firmware upgradeable Yes
• Rack mounting Yes
• Total Power over Ethernet (PoE) budget 384 W
• Power over Ethernet (PoE) Yes
• Number of fans 2 fan(s)
• Mean time between failures (MTBF) 224143 h
• Web-based management Yes
• Cloud-managed Yes
• Quality of Service (QoS) support Yes
• Multicast support Yes
• Power over Ethernet (PoE) power per port 30 W
• Surge protection voltage 6 kV
• Copper ethernet cabling technology 100BASE-X
• Jumbo frames support Yes
• VLAN support Yes
• Power over Ethernet (PoE) type supported PoE+
• IGMP snooping Yes
• Virtual LAN features Port-based VLAN
• Surge protection Yes
• Auto MDI/MDI-X Yes
• Power over Ethernet plus (PoE+) ports quantity 24
• Heat dissipation 1546.15 BTU/h
• Number of VLANs 32
• SFP module slots quantity 2
• Flow control support Yes
• Rack mount kit Yes
• MAC address table 8000 entries
• Switch type Managed
• Switch layer L2
• Port mirroring Yes
• Broadcast storm control Yes
• Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity 26
• Forwarding rate 41.66 Mpps
• Switching capacity 56 Gbit/s
• Link aggregation Yes
• Store-and-forward Yes
• Jumbo frames 15000
• 10G support No
• Gigabit Ethernet (copper) ports quantity 26
• DHCP features DHCP client
• Packet buffer memory 4 MB
• Fanless No
• Queue scheduling algorithms Weighted Round Robin (WRR)
• Product colour Black
• Height 44 mm
• Width 440 mm
• Depth 330 mm
• Housing material Metal
• Certification FCC, CE, RoHS
• Compliance certificates Federal Communications Commission (FCC)
• Unified static configuration Yes
• Fast leave Yes

Särskilda hänvisningar

• ean13 1210002600989
