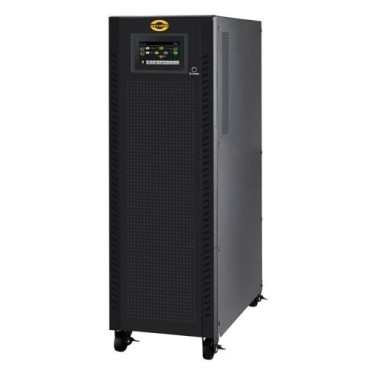

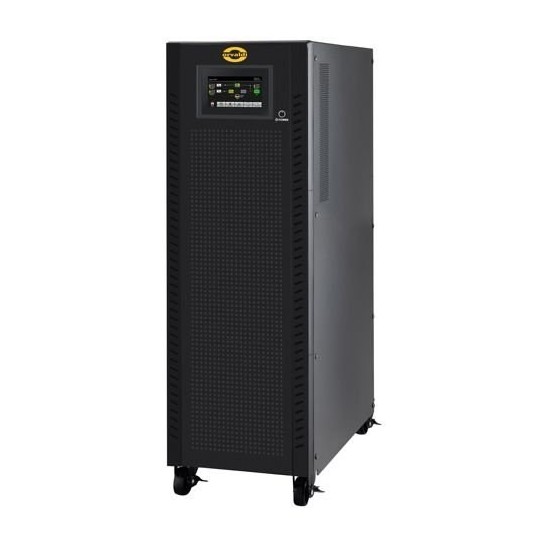

ORVALDI V10K 3F / 3F ON-LINE 10KVA / 10KW emergency power supply with battery 5 min. and a 4.3 "touch panel

Datablad

• Output power 10000 W
• Operating temperature (T-T) 0 - 40 °C
• Form factor Rackmount/Tower
• Operating relative humidity (H-H) 0 - 95%
• LED indicators Yes
• Sustainability certificates CE
• Display LCD
• Noise level 55 dB
• USB port Yes
• ECO mode Yes
• Sustainability compliance Yes
• Input operation voltage (min) 110 V
• Input operation voltage (max) 300 V
• Efficiency 94%
• Serial interface type RS-232
• Serial ports quantity 1
• Serial interface Yes
• Audible alarm(s) Yes
• Rack capacity 2U
• Output frequency 50 Hz
• Output power capacity 10000 VA
• Automatic Voltage Regulation (AVR) Yes
• Power factor 1
• Output voltage Total Harmonic Distortion (THD) 1%
• Cold start Yes
• Waveform Sine
• UPS topology Double-conversion (Online)
• Output operation voltage (min) 200 V
• Output operation voltage (max) 240 V
• Audible alarm modes Alarm when on battery, Fault, Low battery alarm, Overload alarm
• Output voltage regulation 1%
• Crest factor 3:1
• Efficiency (On-line mode) 93%
• Product colour Black
• Height 1000 mm
• Width 300 mm
• Weight 126 kg
• Depth 815 mm
• Input frequency 50/60 Hz
• Charging current 2 A

Särskilda hänvisningar

• ean13 5904006036542
